High precision with excellent cost performance
|

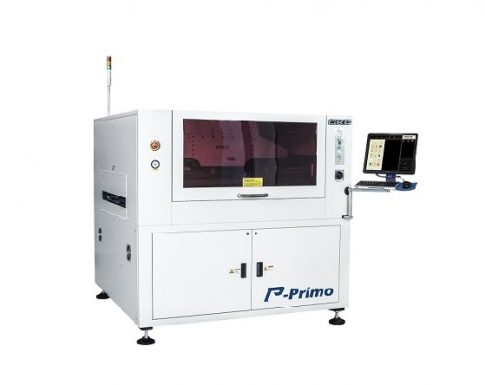

Catering to customers’ ultra large printing needs, P-Primo is the ideal printer that serves XL size PCB of up to 850mm x 610mm.
|
Above & beyond your expectations
|
Superior Productivity. Versatility
With the best throughput in an advanced, all-in-one
Class leading speed, up to 47,000 cph
Wide component range: 0201mm*~74x74mm / 50x150mm
Large PCB size up to 650x370mm (1200x370mm by 250mm extension conv)
Optimum line balance and highest throughput
Optimal for LED placement
|
Expanded versatility for LED production and more!

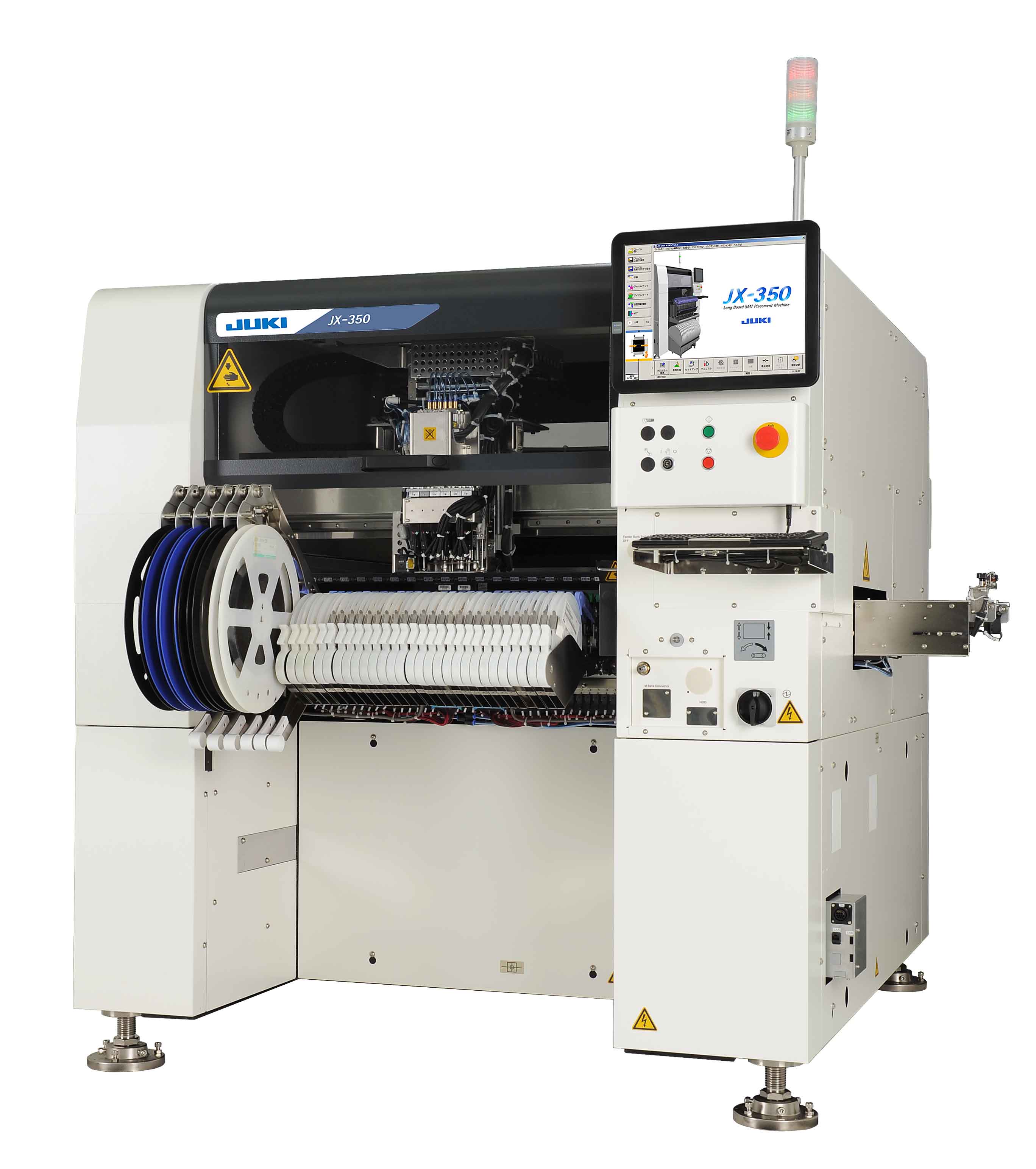

JX-350 is now available with faster placement speed and improved placing ability
|
As a Chip Mounter, as a Flexible Mounter, as a Balancer. Any item can be produced for smart production.
The new mounter will change the conventional common sense of the ever innovative.
X-Large PCB Size: 50×50㎜~650×560㎜
|
Innovative Production Efficiency Improvement for the Whole Factory
Graphical system visualization
JaNets Integration
New P16S head with improved accuracy
Simultaneous production of PCBs
Top and Bottom Check of Leaded Parts
Low impact placement force

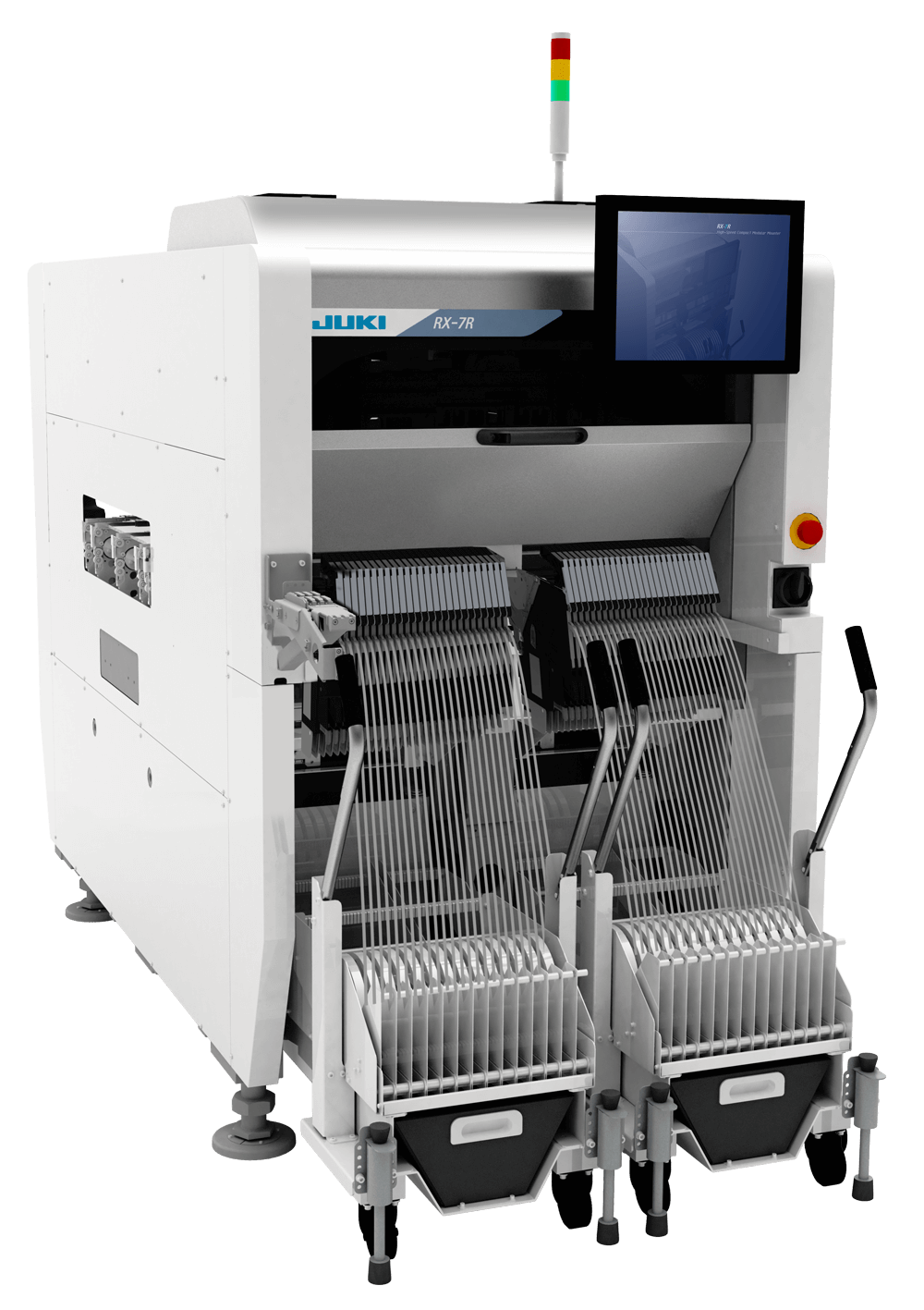

Optimal Speed can achieve 75,000 CPH
Compact Design – 998mm width
Wide Component Range
|
Overwhelming speed
Remarkable accuracy
|

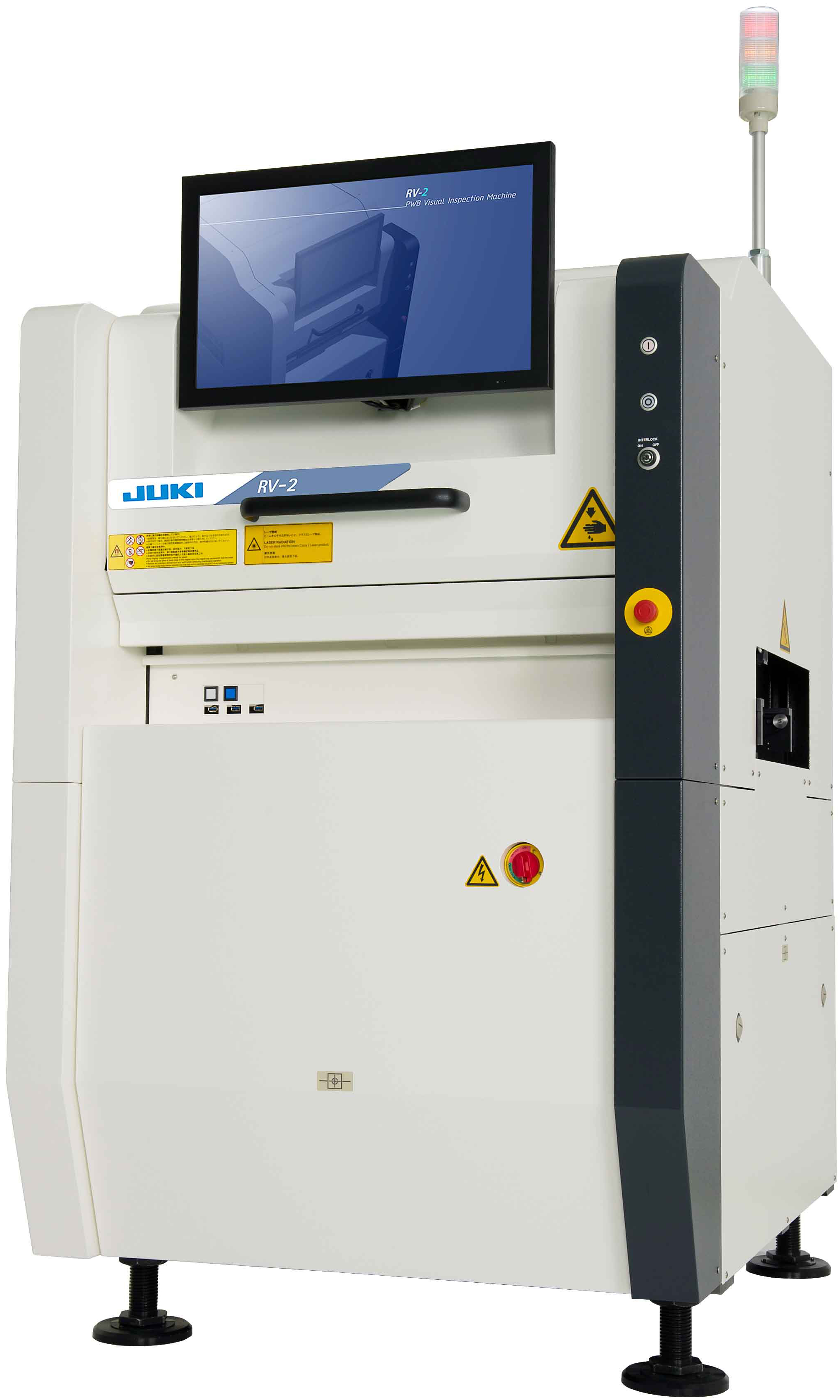

Space-saving and compact single-lane inspection machine.
Clear Vision Capturing System
Worlds top-class high performance
Inspection speed = 0.2 sec / frame
Easy programming
CCC ( Central Confirmation Control)*
SPC ( Statistical Process Control) *
Supports 3D inspection *
|

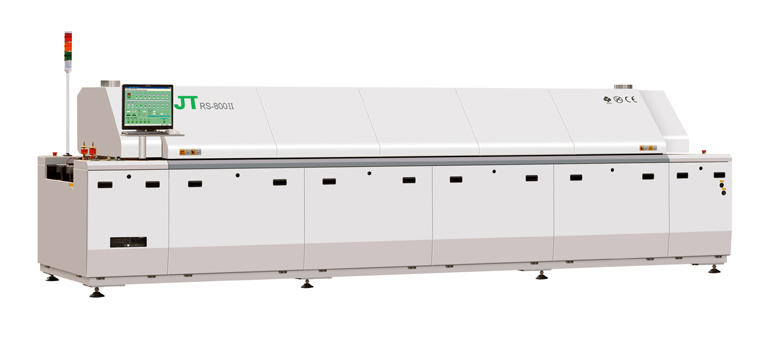

High quality - Stablility - Economy.
Independent Air Control.
Low power consumption.
|
EU Standard & Parts - Efficiency - Economy!
|
New development by SEF Germany - 30 years in manufacturing reflow oven
Usability, low power consumption
Interfaces for the communication with other devices.
|
* MAXIMUM CAPACITY 3624 REELS. HEIGHT OF THE REELS FREELY CONFIGURABLE UP TO 88MM
* Simultaneous Extraction and Insertion of up to 27 Reels at a Time
* Integration into SMT line
* ESD Compliant
|
ALL-IN-ONE Advanced Technology SMT Rework Station
Compatible For Rework Of All Various Types of SMD components
Compact Size, Stable, Easy Operations with Smart Software
L-size, XL-size are available
|
Simple & Precise Operation.
You Can Rework Nearly Any SMT Component
|
Fast and Safety Manual Soldering
|
Adopting Super Tip!!
It has been developed specifically for lead free soldering.
|
DEN-ON NSC-7000Z
is of the pump built-in structure with a temperature control circuit. Best tool recognized all over the world.
|

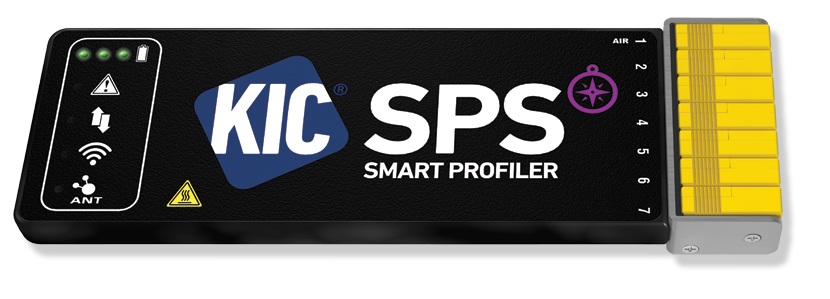

The smart profiler for reduced cost, improved quality and convenient data sharing
Available in 7,9 and 12 channel
Built with the Latest Data Processing and Wireless Technologies Available —
A Smart Device
|
The Smart Fixture with Built-In Data Collection Module
SRA Advantages
Laser Technology for Speed Measurement
Instant Insight into Oven Performance
Compatible with KIC Ecosystem
Profiler Embedded in Fixture
2 Year Warranty
|
ProBot Advantages:
• Flexible
• Affordable
• Easy to UseSoftware
• 24 Hour CustomerSupport
|
Robust Hardware – Ease of Use – Process Optimization
2 Year Warranty – 24 Hour Word Class Customer Support
|
Easy to use – Low cost – Compact
The new KICStart2 is a modern profiler that does not try to do too much, but what it is designed to do it does it exceptionally well.
|

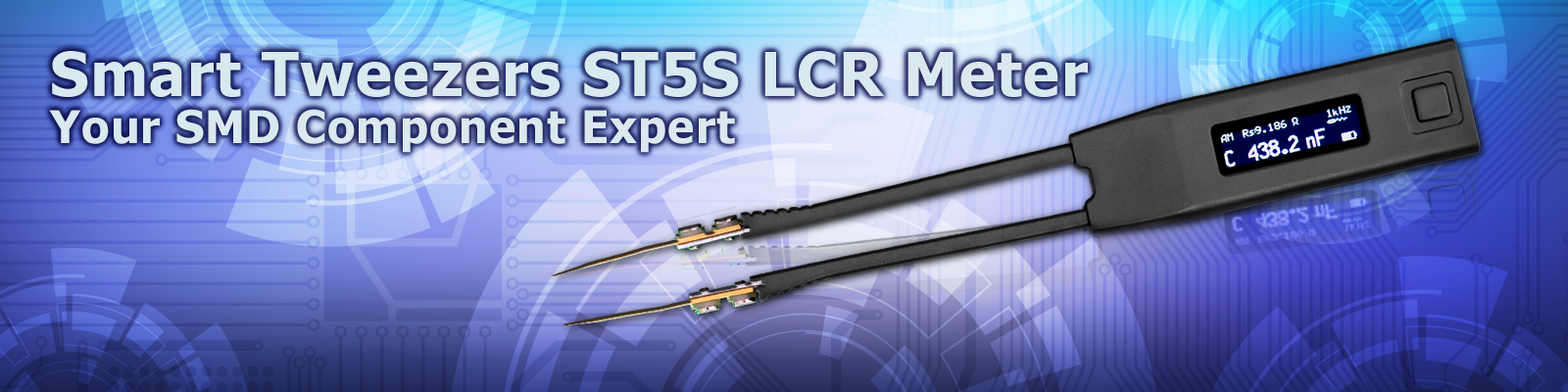

High Speed, High Precision LCR Meter in Tweezers
Wide measurement range starting from 0.5pF, 0.5μH and 50mΩ
Capacitor ESR Value Display
|
Based on our flagship ST5S LCR Meter
Bluetooth Low Energy connectivity
Real Time readings streaming
iOS and Android support
Windows Ultility is now available
|
Very Low Cutting Stress - Stable - Simple Operation
Manual Mode & Semi-Auto Mode (Motorized)
Wide range of Board width up to 460mm
|
Safety Operations without zero fire risk
Patented nozzle precision design
4-level filtering system
Low solvent comsumption
Water-based chemical & IPA are compatible
|
500g jar x 2 simutaneously mixing
Or 500g jar x 1 ( weight variable function)
Easy operation
Various Adaptors
|
Use Distilled Water or DI. Water -> reduce the effection of carbon.
Possible to clean 12/24pcs at the same time.
Easy operation.
Reduce downtime by using flexible nozzle holder.
|
Mechanical Accuracy +/- 0.04 mm.
Supported 22” input and output tape.
Supported 8~88 mm width cover tape.
RS232 interface,easily communicate with third party automatic system.
PSA (Press sensitive adhesive) and hot melt sealer.
CE Certificate.
|
Automatic - Extremely Acurracy - Easy for Operation - Multi-Function
|
The safest, most accurate, most advanced SMT board separator
|
JUKI - PANASONIC - FUJI - YAMAHA - ASM
Original New 100% Parts
Feeder, Trolley, Feeder Parts
CPU Board, Control Board, IO Board, Hard Disk
Servo Motor, Servo Driver
Sensor, Belts,...
|
Design & Quality Control in Japan (by K-WORLD); Fabrique by Bosung Korea.

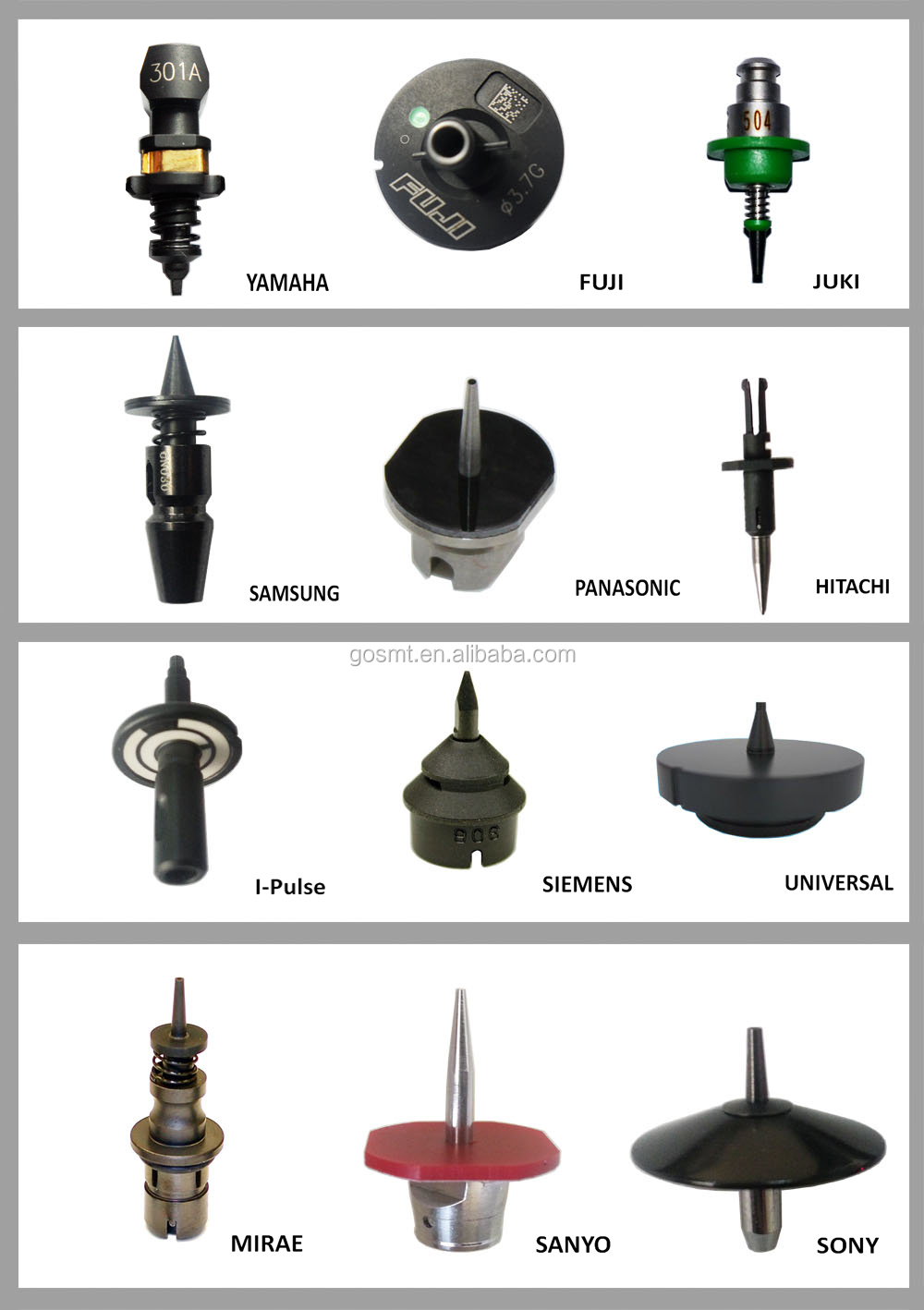

SMT Nozzle for all Mounter Brands: Panasonic, Fuji, Hitachi, Yamaha, Juki, Samsung, Siemens, Mirae,...etc
Custom nozzles are available at reasonable price and short lead-time
|

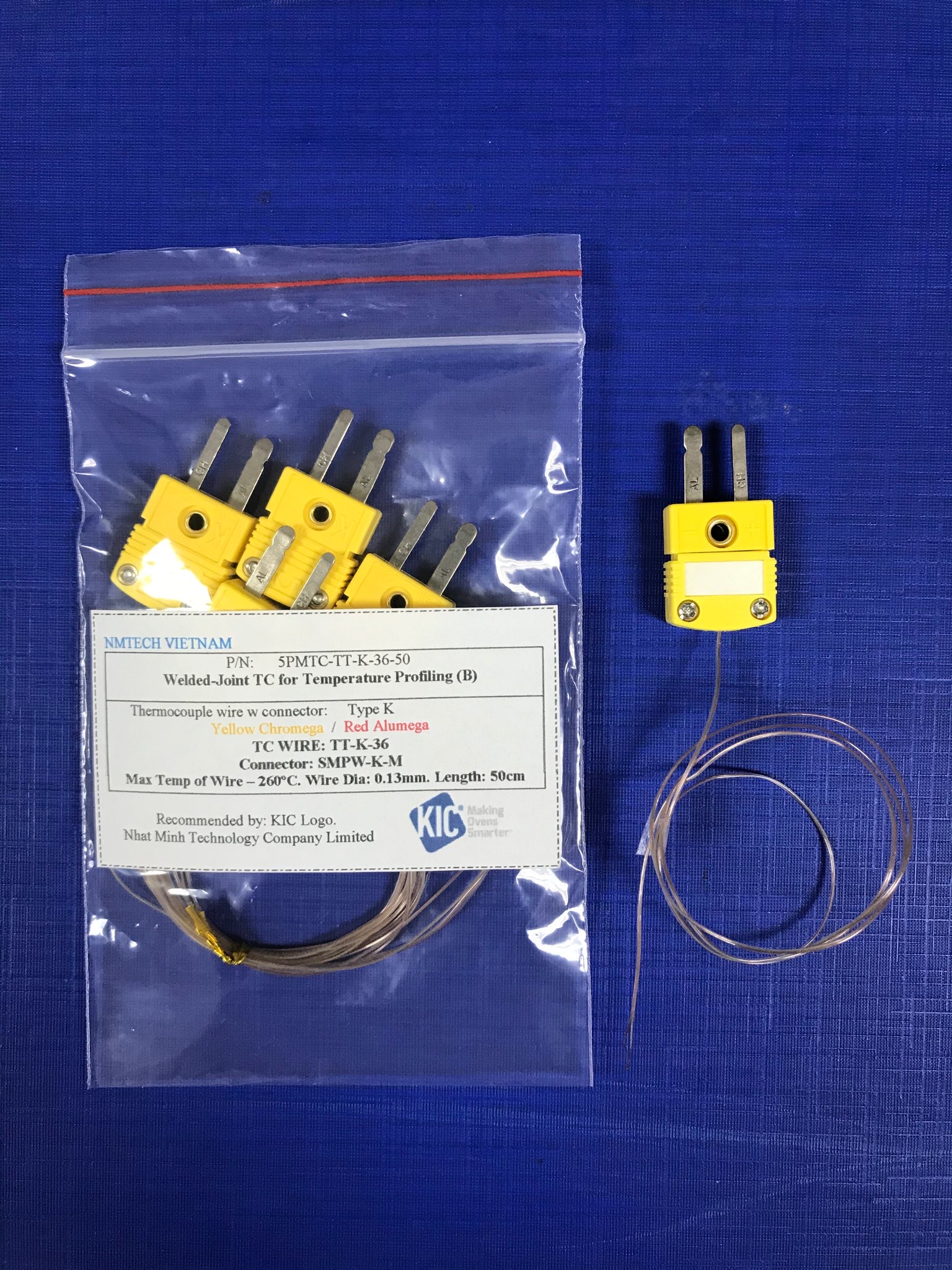

Ultra-High Accurate Thermocouple
Wide-range of wire diameters from 30AWG to 40AWG (0.25mm to 0.08mm)
Welded joint & High Temp Resistance 260 degree C
Made in USA
|
Glass cloth coated tape with silicone adhensive
High temp resistance
No glue residue
Re-used many times
RoHS and Halogen Free
|
Double-sided silicone glass cloth tape coated.
High Temp Resistance & No adhension residue.
Special design for FPC assembly process.
Re-used upto 500 times.
ESD, RoHS and Halogen Free.
|

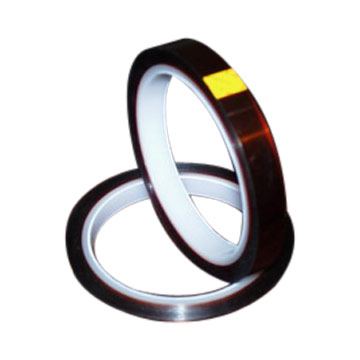

Polymide tape coated with silicone adhensive
Double-sided
High Temp Resistance, no glue residue
RoHS & Halogen Free, UL, REACH
|
Polymide tape coated with silicone adhensive
Single side
High temp resistance, no residue
RoHS & Halogen Free, UL, REACH
|
CE Available
PLC Control System
Ergonomic Design
Standard SMEMA Communication
|
Exceptional Quality Imaging.
The Makrolite 4K digital microscope simplifies your visual inspection, image capture and measurement tasks with the exceptional quality of Ultra High Definition image resolution.
|
The Power of 3D Digital Stereo
Get the viewing benefits of a 3D high resolution stereo zoom microscope and the convenience and speed of a digital microscope in one. Using the incredible DRV display technology, 3D stereo images can be viewed, captured and shared, using glasses-free technology. Magnification up to 700x makes DRV Stereo CAM as useful for capturing and sharing the smallest details efficiently and effectively.
|
Inspect anything, anywhere
Camβ is Vision Engineering’s portable, secure hand-held digital magnifier. Capable of 4x to 20x magnification, this robust ‘go-anywhere’ inspection and digital capture tool is ideal for use in the lab, around the factory or in the field.
|
Quick. Easy. Compact
Compact full HD digital microscope system for quick and accurate inspection right where you need it. High quality custom-made optics and digital features combine for superior performance. Ideal for visual inspection or manufacturing quality control.
|
The Lynx EVO was designed to increase productivity through superior ergonomics. Whatever your challenge – inspection, production, reworking, or anything else requiring magnification – 3D depth perception and bright, high resolution, high contrast images lets you work comfortably and with greater concentration. Magnifications from 2.7x to 240x make it ideal for a wide range of applications.
|
D Stereo. 3D Digital. Perfect Zoom.
View and share 3D images and video from an optical stereo zoom microscope. Combining technologies of Deep Reality Viewer (DRV) for 3D imaging with great depth perception, and Nikon SMZ for outstanding 25:1 zoom ratio, excellent image details and magnifications up to 800x.
|
Exceptional Dynascope™ optical measuring microscopes allow you to see what you want to measure more details, more clarity
Range of video measuring machines provide high accuracy non-contact measurement of complex manufactured components and materials
|
We are developping solder and related products to meet three objectives:
- To develop solder is better than Tin/Lead solder
- To develop environmental friendly solder
- To develop solder with minimal change to the current process in the industry
|

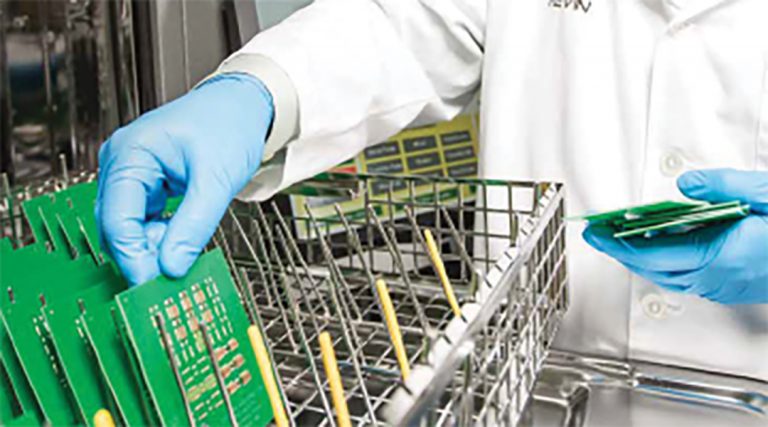

Development of high performance, innovative cleaning process solutions for Electronics Manufacturing.
Environmentally Responsible Cleaning Chemistries.
Advanced Cleaning Technologies That Manage and Control Your Cleaning Processes.
|
Fully Automatic inline cleaning machine is suitalbe to high volume PCBA and Semicon products flux residue cleaning. Many options to select for process optimization and cost control.
|
The K-1800 stencil cleaner using solvent or water-based liquid (ex: Kyzen L5611 / L5611D) has proved with excellent performance and low-cost by more than 300 customers world-wide. It can also clean misprint boards and scarper with optional fixtures.
|
Cleaning machine for small and medium PCBA production capacity. Inside-clean technology model. Entire washing, rinsing and drying processes are executed insidely. High cleaning quality performance. Satisfy many PCBA cleaning applications.
|
